vanEE® G2400HE ERP_020506

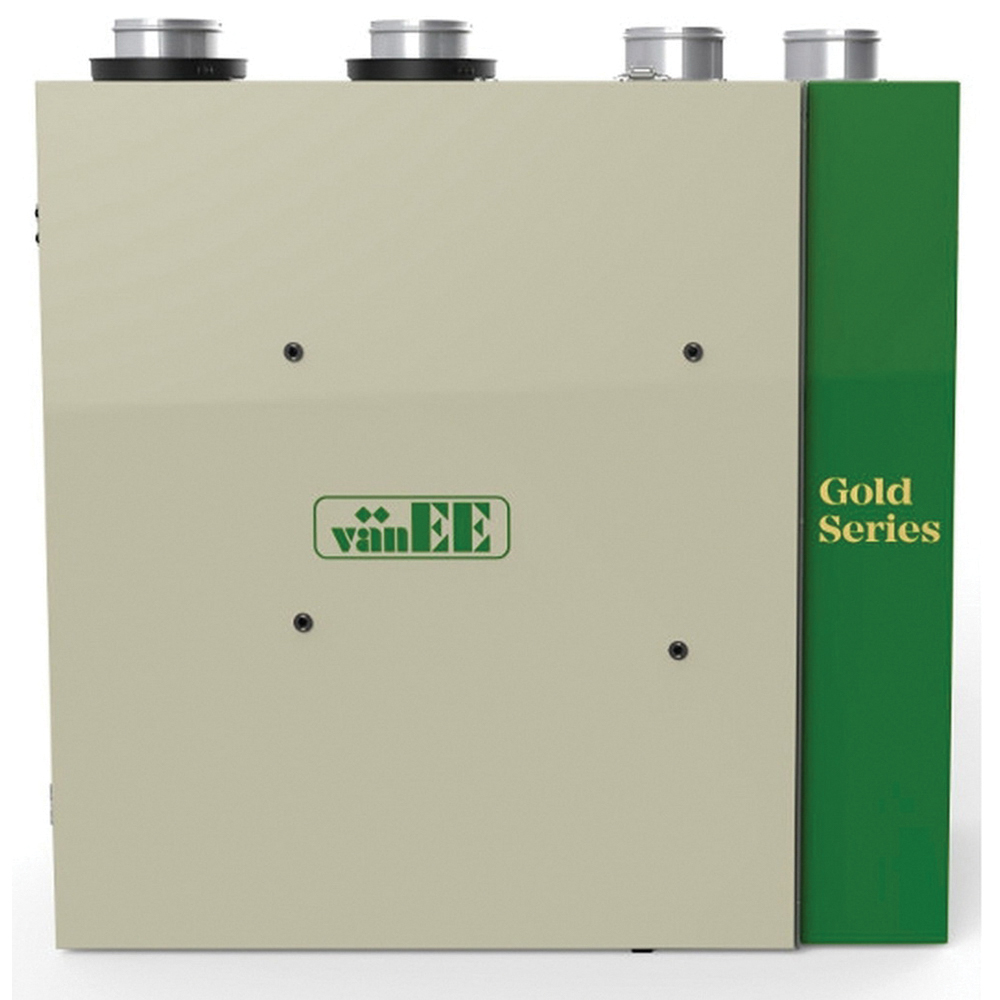

vanEE® Gold G2400HE Heat Recovery Air Exchanger, Up to 226 cfm Air Flow, 120 VAC, 2.2 A, 135 W, Polypropylene
- Manufacturer: Venmar Ventilation
- Brand Name: vanEE®
- Part Number: ERP_020506
- MPN: G2400HE
- UPC: 772371135208
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
The whole home ventilation system is a centerpiece of today's energy-efficient homes. vanEE® introduces its new Gold series that combines the best performance with the best energy efficiency to provide fresher, purer air in your home at a lower overall operating cost. That's pure efficiency.
vanEE® Heat Recovery Air Exchanger, Air Flow Capacity: Up to 226 cfm, 2.2 A, 120 VAC, 60 Hz Frequency, 135 W Power, 175 sq-ft Coverage Area, -25 to 0 deg C, 0.4 in-WG, 6 in Duct, Effectiveness: 83 to 85 %, Temperature Recovery Efficiency: 68 to 81 %, 12 in W x 12 in H x 16.6 in D Core, Wall Mounting, Polypropylene, 20-1/16 in Length, 32-3/16 in Width, 33-3/16 in Height
| Air Flow Capacity | : | Up to 226 cfm |
| Amperage Rating | : | 2.2 A |
| Core Size | : | 12 in W x 12 in H x 16.6 in D |
| Coverage Area | : | 175 sq-ft |
| Duct Size | : | 6 in |
| Effectiveness | : | 83 to 85 % |
| Frequency Rating | : | 60 Hz |
| Height | : | 33-3/16 in |
| Length | : | 20-1/16 in |
| Material | : | Polypropylene |
| Mounting Type | : | Wall |
| Power Rating | : | 135 W |
| Pressure Rating | : | 0.4 in-WG |
| Temperature Rating | : | -25 to 0 deg C |
| Temperature Recovery Efficiency | : | 68 to 81 % |
| Voltage Rating | : | 120 VAC |
| Width | : | 32-3/16 in |
- The G2400H ECM is the perfect solution for mid to large size homes in need for the most energy-efficient ventilation solution
- German made ECM motors
- Minimal power consumption of 19 W and cfm/W of 3.4 at 64 cfm
- MERV 6-grade filters and optional HEPA filtration
- Electronic balancing and no balancing dampers
