vanEE® G3000HE ERP_020242

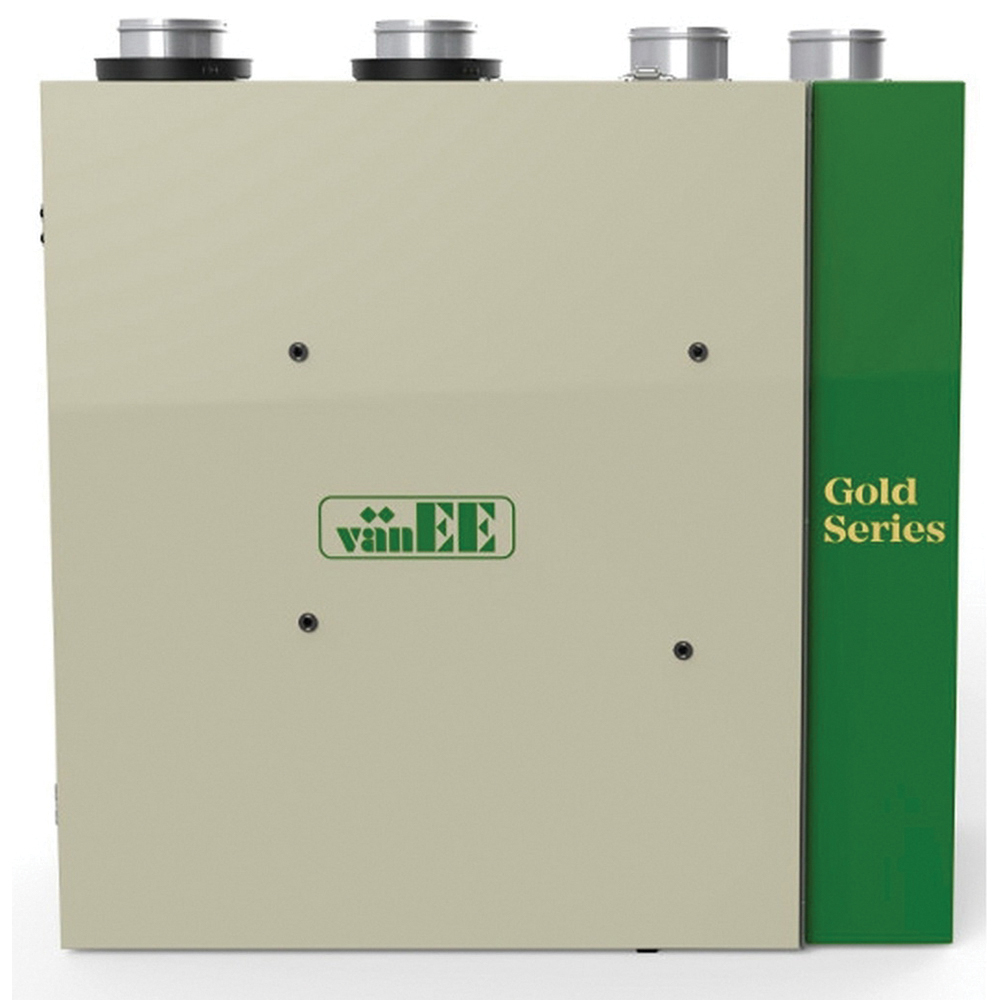

vanEE® Gold G3000HE Top Port Heat Recovery Ventilator, 50 to 250 cfm Air Flow, 120 VAC, 2.2 A, 135 W, Steel, Pre-Painted
- Manufacturer: Venmar Ventilation
- Brand Name: vanEE®
- Part Number: ERP_020242
- MPN: G3000HE
- UPC: 772371135222
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Availability
-
Price:
The whole home ventilation system is a centerpiece of today's energy-efficient homes. vanEE® introduces its new Gold series that combines the best performance with the best energy efficiency to provide fresher, purer air in your home at a lower overall operating cost. That's pure efficiency.
vanEE® Top Port Heat Recovery Ventilator, Model: G3000H ECM, Air Flow Capacity: 50 to 250 cfm, 2.2 A, 120 VAC, 60 Hz Frequency, 135 W Power, 144 sq-ft Coverage Area, 0 to 32 deg F, 0.4 in-WG, 6 in Duct, Temperature Recovery Efficiency: 75 %, 12 in W x 12 in H x 16.6 in D Core, Steel, Pre-Painted, 33-9/16 in Length, 32-3/16 in Width, 18-11/16 in Height
| Air Flow Capacity | : | 50 to 250 cfm |
| Amperage Rating | : | 2.2 A |
| Core Size | : | 12 in W x 12 in H x 16.6 in D |
| Coverage Area | : | 144 sq-ft |
| Duct Size | : | 6 in |
| Finish | : | Pre-Painted |
| Frequency Rating | : | 60 Hz |
| Height | : | 18-11/16 in |
| Length | : | 33-9/16 in |
| Material | : | Steel |
| Model | : | G3000H ECM |
| Power Rating | : | 135 W |
| Pressure Rating | : | 0.4 in-WG |
| Temperature Rating | : | 0 to 32 deg F |
| Temperature Recovery Efficiency | : | 75 % |
| Voltage Rating | : | 120 VAC |
| Width | : | 32-3/16 in |
- The G3000H ECM is the perfect solution for mid to large size homes in need for the most energy-efficient ventilation solution
- German made ECM motors
- MERV 6-grade filters
- Electronic balancing and no balancing dampers
