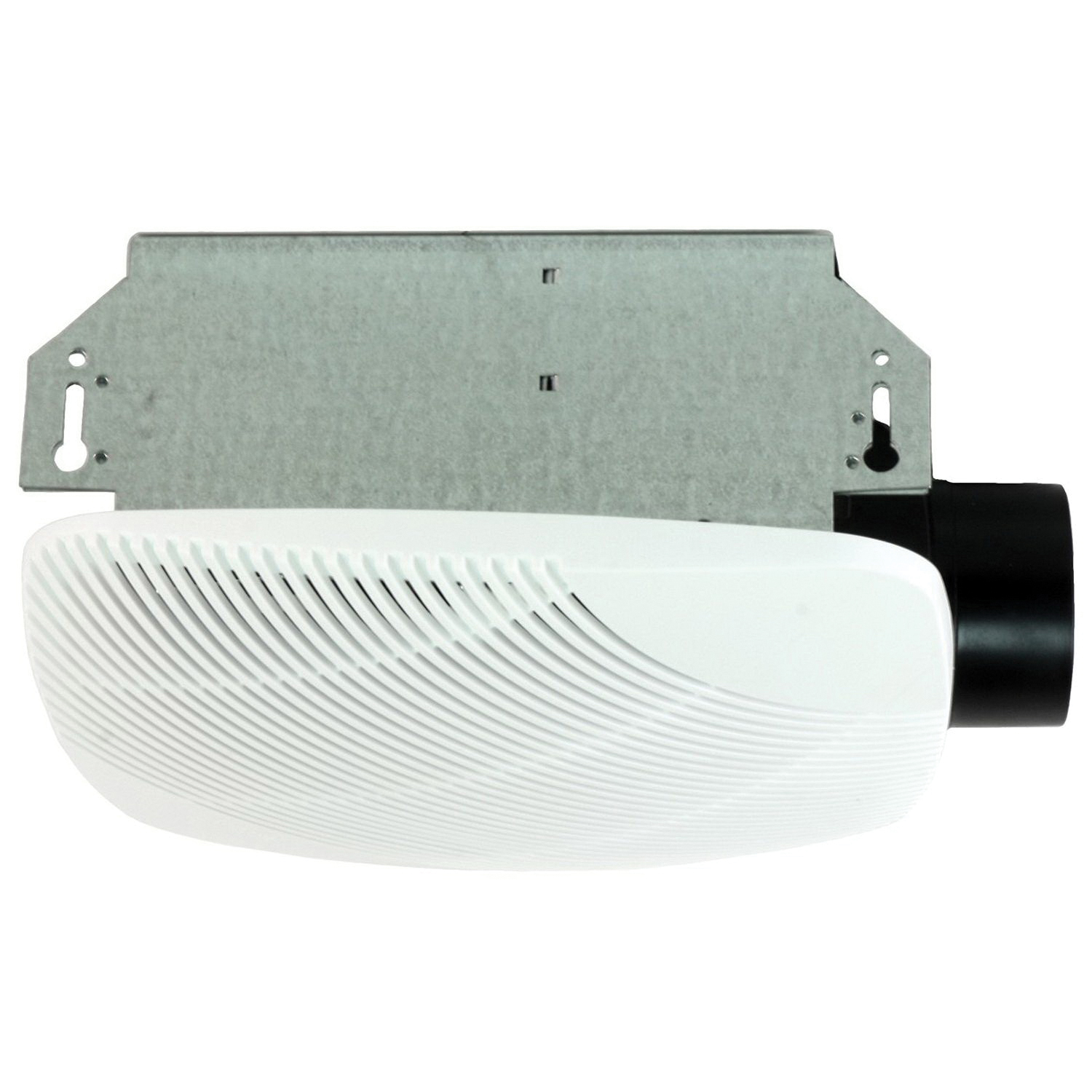

Discover the advantages of the Contractor's choice fans. Ideal for baths, powder rooms or utility rooms. This series features our patented curved grille design for efficient airflow and contemporary style. The NuVent NX503 fan offers new style and flexibility. The 503 is ideal for baths, powder rooms and utility rooms from 45 - 65 sq-ft. This fan can be mounted in a side wall installation.
Ventamatic® Ventilation Fan, 120 V, 0.9 A, 60 Hz, 44 W, 0.024 in Galvanized Steel Housing, Polymeric Grille, White, Sidewall/Ceiling Mounting, 7-7/16 in L, 3-3/4 in W, 8 in H, 10-1/4 in L Grille, 50 cu-ft/min, 3 in Duct
| Amperage Rating | : | 0.9 A |
| CFM Rating | : | 50 cu-ft/min |
| Color | : | White |
| Duct Size | : | 3 in |
| Frequency Rating | : | 60 Hz |
| Grille Size | : | 10-1/4 in L |
| Height | : | 8 in |
| Length | : | 7-7/16 in |
| Material | : | 0.024 in Galvanized Steel Housing, Polymeric Grille |
| Mounting Type | : | Sidewall/Ceiling |
| Power Rating | : | 44 W |
| Voltage Rating | : | 120 V |
| Width | : | 3-3/4 in |
- Grille - attractive curved styling with soft rounded profile, textured
- Mounts directly to housing with torsion springs
- This product is approved for use over tub/shower enclosures when installed in a GFI protected branch circuit
- 1 year limited warranty
- Extended discharge collar for easy attachment to 3 in Dia duct
- Large removable wiring compartment
- Removable blower with easy slide-in-mounting
- Plug-in motor
- Built-in backdraft damper
Instruction/Installation Manual
