This is our fastest growing line of effluent pumps. The 150 Series is truly a workhorse designed for reliability under extreme conditions in an effluent environment. 150 Series pump curves cover a wide range of applications. They are well-suited to applications with low pressure pipe (LPP) and enhanced flow STEP systems. Zoeller's cool run design and corrosion-resistant, powder-coated epoxy finish, in addition to the hermetically sealed, oil filled motor and non-clogging vortex impeller add up to a long-lasting, trouble-free product.

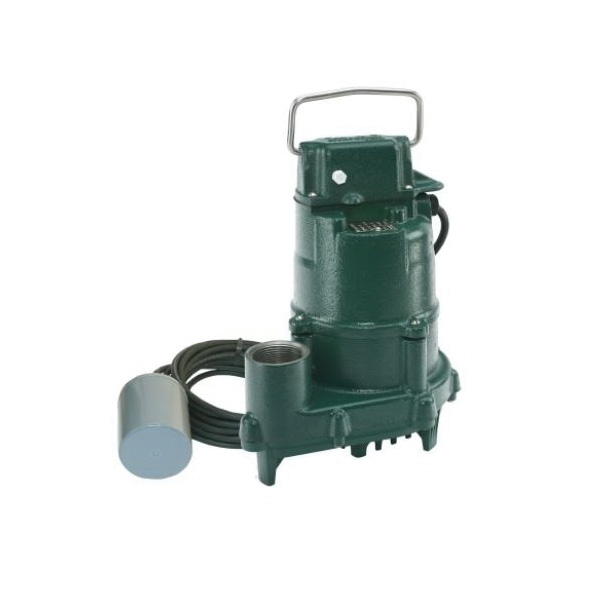

Zoeller® 150 Dose Mate Effluent Pump, Model: 150, 115/230 VAC, 8.5 A, 0.56 kW Power, 60 Hz Frequency, HP Rating: 4/10 hp, 3450 rpm Speed, 77 gpm Flow Rate, 1 ph Phase, 1-1/2 in Discharge, 20 ft Cord Length, 44 ft Maximum Feet of Head, 130 deg F, Engineered Thermoplastic Impeller, 12-1/8 in H Dimensions, Cast Iron Housing, Neoprene Gasket, Stainless Steel Hardware, Powder-Coated Epoxy
| Amperage Rating | : | 8.5 A |
| Cord Length | : | 20 ft |
| Dimensions | : | 12-1/8 in H |
| Discharge Size | : | 1-1/2 in |
| Finish | : | Powder-Coated Epoxy |
| Flow Rate | : | 77 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 4/10 hp |
| Impeller Material | : | Engineered Thermoplastic |
| Material | : | Cast Iron Housing, Neoprene Gasket, Stainless Steel Hardware |
| Maximum Feet of Head | : | 44 ft |
| Model | : | 150 |
| Phase | : | 1 ph |
| Power Rating | : | 0.56 kW |
| Speed Rating | : | 3450 rpm |
| Temperature Rating | : | 130 deg F |
| Voltage Rating | : | 115/230 VAC |
- Durable, cast iron construction
- Timed dosing panels
- Stainless steel lifting handle
- Assembled with stainless steel bolts
- Non-clogging, engineered thermoplastic, vortex impeller design
- Motor - 3450 rpm, oil filled, hermetically sealed and automatic reset thermal overload protected
- Carbon/ceramic seals
