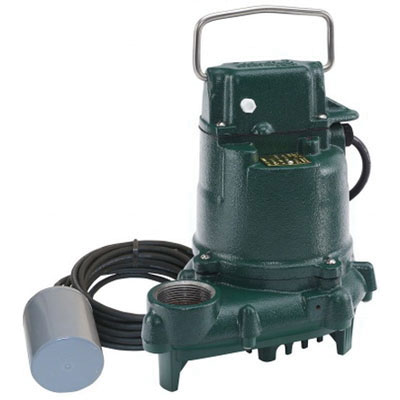

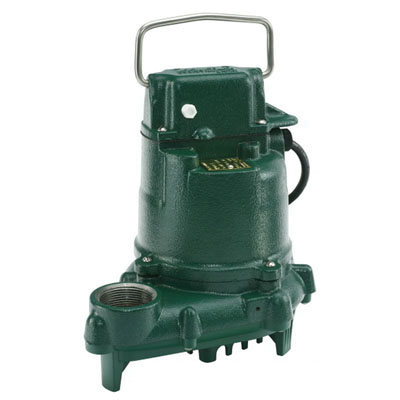

Zoeller® Sump Pump, Series: Mighty-Mate, 53 Model, 115 V, 9.7 A, 60 Hz, 1/3 hp, 1550 rev/min Speed, 43 gal/min at 5 ft, 34 gal/min at 10 ft, 19 gal/min at 15 ft, 1 -Phase, 1-1/2 in NPT Discharge, 9 ft L Cord, 19.25 ft Max Feet of Head, 130 deg F, Glass-Filled Plastic Impeller, Cast Iron, 10-1/16 in H
| Amperage Rating | : | 9.7 A |
| Cord Length | : | 9 ft |
| Dimensions | : | 10-1/16 in H |
| Discharge Size | : | 1-1/2 in NPT |
| Flow Rate | : | 43 gal/min at 5 ft, 34 gal/min at 10 ft, 19 gal/min at 15 ft |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/3 hp |
| Impeller Material | : | Glass-Filled Plastic |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 19.25 ft |
| Model | : | 53 |
| Phase | : | 1 |
| Speed Rating | : | 1550 rev/min |
| Temperature Rating | : | 130 deg F |
| Voltage Rating | : | 115 V |
- Cast iron switch case, motor and pump housing
- Engineered thermoplastic base
- A stainless steel float guard and switch arm
- One solid, buoyant polypropylene float
- Engineered, glass filled, plastic impeller with metal insert
- Stainless steel guard and handle
- Lower and upper bearings, oil fed cast iron
- 7-1/4 in auto on points
- 3 in auto-off points
- Passes 1/2 in spherical solids
- Non-clogging vortex impeller
- Water-tight - dust tight, permanently oiled bearings
- Class B insulation
- Carbon and ceramic seals, neoprene gasket
- Stainless steel hardware
- AISI 1215 cold roll steel motor shaft
- Includes a float-operated, two-pole mechanical switch
